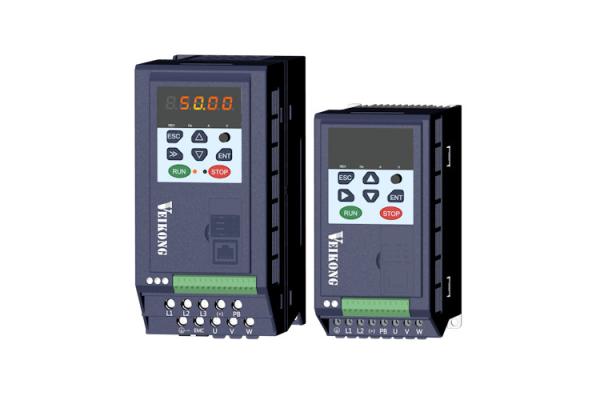

    Single Phase Three Phase VEIKONG Solar Pump Inverter 15HP 20HP 30HP 40HP 220v 380v

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VFD500-PV
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

    Single Phase Three Phase VEIKONG Solar Pump Inverter 15HP 20HP 30HP 40HP 220v 380v

    15HP 20HP 30HP 40HP 220v 380v single phase three phase solar pump inverter


    VEIKONG SOLAR PUMP INVERTER Special feature:
    Support Maximum mppt efficiency 99%
    Special solar mppt mode and PID mode
    Support LCD display
    Support GPRS remote control
    Support IM AND PM pump
    Support hybrid AC and DC
    Support Marco mode
    Support dry run protection
    Support full water and low water protection
    Support one button to switch AC

    Electrical Specifications and Power degree


    220V380V
    Max input DC voltage450V810V
    DC voltage range150~450VDC300~810VDC
    Normal working DC voltage260V-400V400V-650V
    Recommended input mppt voltage330V550V
    MPPT efficiency>99%
    Rated output voltage1/3-phase 220VAC3-phase 380-480VAC
    Output frequency range50/60Hz
    Max efficiency of the machine99%
    Power range220v 0.75kw to 75kw, 380v 1.5kw-160kw
    Cooling methodAir cooling
    Protection degreeIP20/IP65
    AltitudeBelow 1000m; above 1% for every additional 100m.
    StandardCE/ROHS

    Model Range


    Drive ModelRelated VoltageMax DC input voltage (V)Rated output current (A)Applicable water pump (KW)SIZE
    VFD500M-20T00150-PV220V80071.5SIZE A
    VFD500M-20T00220-PV220V80010.62.2SIZE A
    VFD500M-40T00150-PV380V8004.21.5SIZE A
    VFD500M-40T00220-PV380V80062.2SIZE A
    VFD500-20T00150-PV220V80071.5SIZE A
    VFD500-20T00220-PV220V80010.62.2SIZE A
    VFD500-20T00400-PV220V800174SIZE A
    VFD500-40T00150-PV380V8004.21.5SIZE A
    VFD500-40T00220-PV380V80062.2SIZE A
    VFD500-40T00400-PV380V8009.44SIZE A
    VFD500-40T00550-PV380V800135.5SIZE B
    VFD500-40T00750-PV380V800177.5SIZE B
    VFD500-40T01100-PV380V8002511SIZE C
    VFD500-40T01500-PV380V8003215SIZE C
    VFD500-40T01850-PV380V8003818.5SIZE D
    VFD500-40T02200-PV380V8004622SIZE D
    VFD500-40T03000-PV380V8006030SIZE E
    VFD500-40T03700-PV380V8007537SIZE E
    VFD500-40T04500-PV380V8009645SIZE F
    VFD500-40T05500-PV380V80011255SIZE F
    VFD500-40T07500-PV380V80015075SIZE G
    VFD500-40T09000-PV380V80017690SIZE G
    VFD500-40T11000-PV380V800210110SIZE H
    VFD500-40T13200-PV380V800253132SIZE I
    VFD500-40T16000-PV380V800304160SIZE I
    VFD500-40T18500-PV380V800340185SIZE J
    VFD500-40T20000-PV380V800377200SIZE J

    Product Application

    Accessories:


    1. GPRS (support 2g/3g/4g internet)


    2. LCD keypad


    3. Output reactor


    FAQ
    1. How to achieve Automatic start after stop?
    If it is controlled by keyboard no need to set any parameter. If you want to control by external switch
    As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com
    and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop
    2. How to use a float in the water tank to stop the pump if the tank is full?
    If your float signal is digital signal Use float switch to short DI 3 and com ,see diagram 1.3
    3. How to set minimum frequency ( for example) 30hz and maximum 50HZ
    Set P47.05=30HZ and 47.06 to some time and 47.07 to some time. Please refer to details of P47.05-47.07
