Mppt 0.75kw-710kw solar water pump inverter ac drive for solar pump irrigation system

VEIKONG is manufacturer of industrial vfd, solar pump inverter, soft starter.

Key Advantages:

1, VEIKONG SOLAR PUMP INVERTER support 220V 0.75kw to75kw, and 380v 0.75kw to 710kw.

2, MPPT 99%, adjust the output frequency to the appropriate frequency in real-time.

3, Light weak protection, dry run and low voltage,full water warning, overvoltage and overtemperature protection.

4, New keyboard design, support optional LCD keypad, simple appearance, and easy operation.

5, Automatic running without any commisioning in keypad control and GPRS monitoring option(as option).

6, Support AC pump and PMSM pump.

7, VFD500-PV series solar water pump controller integrates the latest MPPT technology, high-quality IGBT solutions,

high efficiency, stability and sustainability.

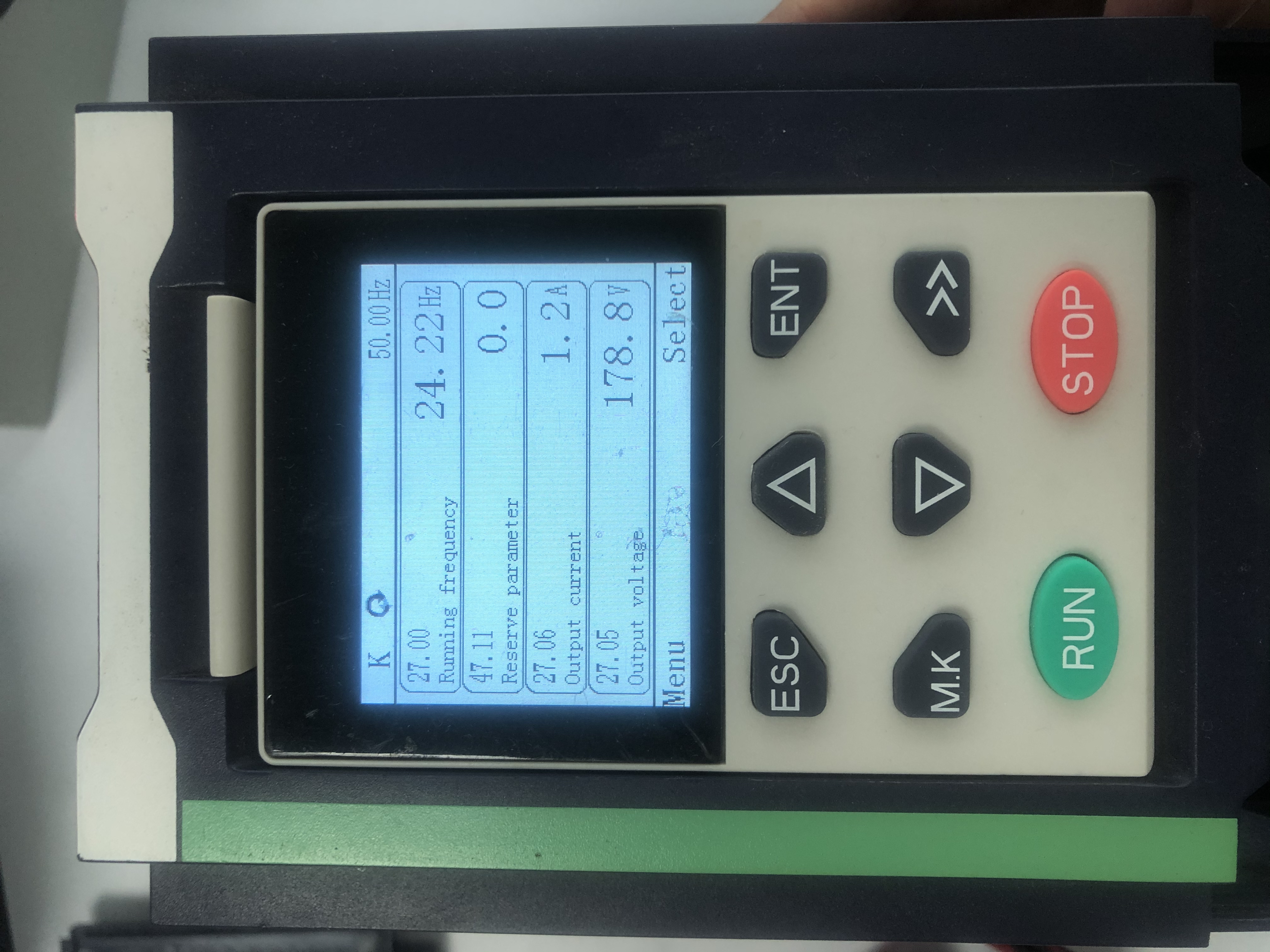

Support optional LCD keypad

Support optional GPRS Module

Product application pictures

Techincal Parameters:

1. Wake up and sleep function parameters:

P47.05	Light detection threshold	If the output frequency is lower than this value and exceeds P47.06, it will be reported to Sleep and stop	0Hz
P47.06	Light detection time	See P47.05 for explanation.	60s
P47.07	Light weak wake up time	After the sleep fault is reported, if the time when Vdc is higher than the undervoltage point is greater than the set value, the fault state is exited and the operation continues.	600s

2. Dry runing protection function parameters:

P24.12	Dry run/Unload protection option	0: No offload detection is performed; 1: Enable dry run detection	1
P24.13	Dry run/Unload detection level	0.0 to 200.0% The percentage of motor rated current.	0.0%
P24.14	Dry run Unload detection time	0.000s～60.000s	30.000s
P24.15	Unload detection offset frequency	0.00Hz～Fmax Detection frequency=Fmax-P24.15	5.00Hz
P24.16	Reset time of dry run protection	0.0～6000.0	240.0s
P23.21	Dry run detection mode	0000:Coast stop 1000:Fast stop 3000:Continue to run	0000
