Mini MPPT VFD Solar Pump Inverter 50hz 60hz Three Phase / Single
Phase Micro Type
1. The Power Range of VFD500M-PV Series for options
| Model | Power capacity(Kva) | Input current(A) | Output current(A) | Adaptable Motor (Kw) | Size | Brake unit |
| Heavy load | Light Load |
| 3 phase: 380V-480V, 50/60HZ |
| VFD500M-R75GT4B-PV | 1.6 | 3.2 | 2.5 | 4.2 | 0.75 | Size B | Internal |
VFD500M-1R5GT4B-PV | 2.8 | 4.7 | 4.2 | 5.6 | 1.5 |
| VFD500M-2R2GT4B-PV | 3.7 | 7.8 | 5.6 | 9.4 | 2.2 |
| VFD500M-4R0GT4B-PV | 6.2 | 11.6 | 9.4 | 10.5 | 3.7 |
| VFD500M-5R5GT4B-PV | 8.6 | 15.6 | 13 | 17 | 5.5 | Size C | Internal |
| VFD500M-7R5GT4B-PV | 11.2 | 20.5 | 17 | 23 | 7.5 |
| 1 phase: 200-240V, 50/60Hz |
| VFD500M-R40GS2B-PV | 1.2 | 6.9 | 2.8 | 3.2 | 0.4 | Size A | Internal |
| VFD500M-R75GS2B-PV | 2.1 | 12.2 | 4.5 | 4.8 | 0.75 |
| VFD500M-1R5GS2B-PV | 3.1 | 17 | 8 | 10.6 | 1.5 | Size B |
| VFD500M-2R2GS2B-PV | 4.1 | 21 | 10.6 | 12.5 | 2.2 |
| 3 phase: 200V-240V, 50/60Hz |
| VFD500M-R40GT2B-PV | 1.2 | 4 | 2.8 | 3.2 | 0.4 | Size B | Internal |
| VFD500M-R75GT2B-PV | 2.1 | 7.1 | 4.5 | 4.8 | 0.75 |
| VFD500M-1R5GT2B-PV | 3.1 | 11.3 | 8 | 10.6 | 1.5 |
| VFD500M-2R2GT2B-PV | 4.1 | 14.5 | 12.5 | 2.2 | |
2. Veikong High Performance Solar Pump Inverter With Nice Features
for Better Solar Sytem
1) High Efficient MPPT which can be up to 99%, it can help to
generate the DC from
solar panels better.
2) Automatic start and stop function, make the whole system in an
energy saving situation
3) More compact size to save delivery cost and much competitve
price help to attract more
end users who want stable and basic functions.
4) It can support external display, well worked even in the control
cabient

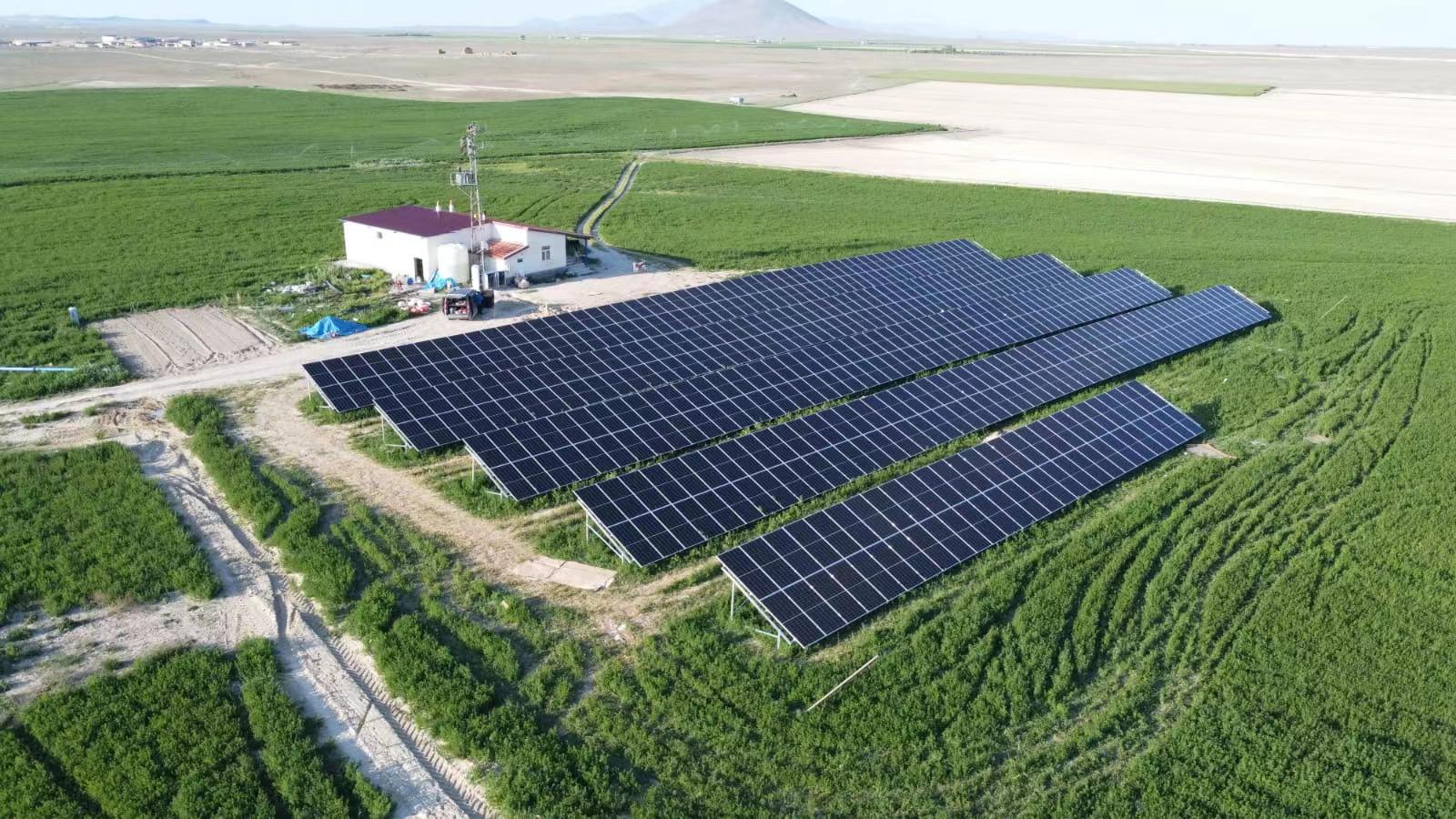

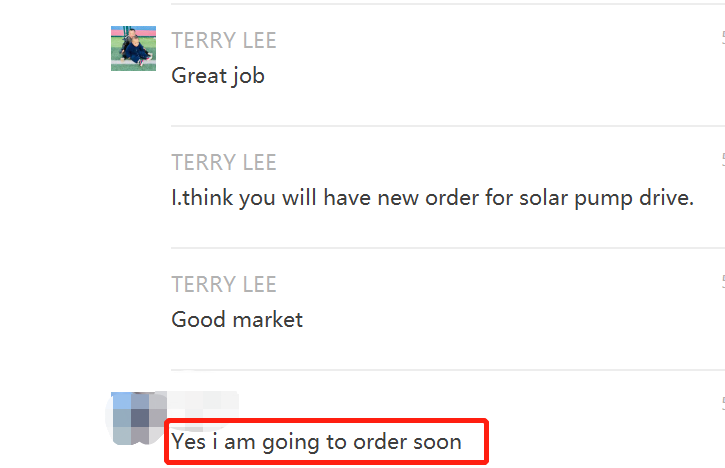

3. VEIKONG VFD500M-PV series Applications and Some Nice Feedback
from Clients
4. Who We Are? Veikong Industrial Co., Ltd from China, one of the
most reliable supplier
Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has
been specializing in researching, manufacturing and trading high,
medium and low voltage inverter, providing our clients with
integrated system solutions. We have professional R&D and
devoted management team with more than 20 years' experience of
theoretical research, product development and quality
management.Veikong also is one of the first independent AC drives
company in China. We adopt SPWM, sensorless vector control and
vector and torque control technology in our VFD series inverters,
which has reached the international advanced standard. The products
can directly replace and be equivalent of Europe and the United
States, Japan and other brands, providing customers with a powerful
technical support. We have achieved popularity and qualification in
VFD industry. Quality is the life of enterprise.
5. Production Detailed Pics
6. Factory Environment For your Reference
