1HP 2HP 2.2KW 4KW SOLAR Vfd Solar Inverter Solar Ac Pump Controller
VEIKONG SOLAR PUMP INVERTER Special feature:
Support Maximum mppt efficiency 99%
Special solar mppt mode and PID mode
Support LCD display
Support GPRS remote control
Support IM AND PM pump
Support hybrid AC and DC
Support Marco mode
Support dry run protection
Support full water and low water protection
Support one button to switch AC
Electrical Specifications and Power degree
| 220V | 380V |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz |
| Max efficiency of the machine | 99% |
| Power range | 220v 0.75kw to 75kw, 380v 1.5kw-160kw |
| Cooling method | Air cooling |
| Protection degree | IP20/IP65 |
| Altitude | Below 1000m; above 1% for every additional 100m. |
| Standard | CE/ROHS |
Noted: We suggest solar panel power should be 1.3-1.4 times higher
than solar pump power ,
And solar pump inverter power should be higher level than solar
pump.
When solar pump distance to inverter higher than 100m,
It should be equipped with Output reactor or higher level power
inverter.
For Solar panel,total VOC less than Maximum DC voltage of inverter
and Solar panel vmp is recommend
530V for 380V pump and 305V for 220V pump.
Performance features:(220v 0.75kw-75kw, 380v 0.75kw-160kw)
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS Moudle Support remote monitoring & control (2G/4G/WIFI for
option)
Support LogEfficieo/Lable/Color/Function OEM Serive
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with
advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar
panels costs
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function –Solar power priority, grid power/generator dual
input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters
can be exported to all countries
Professional & Independent R&D team, good service for pre-sales
and after-sales
Fast delivery and quick response

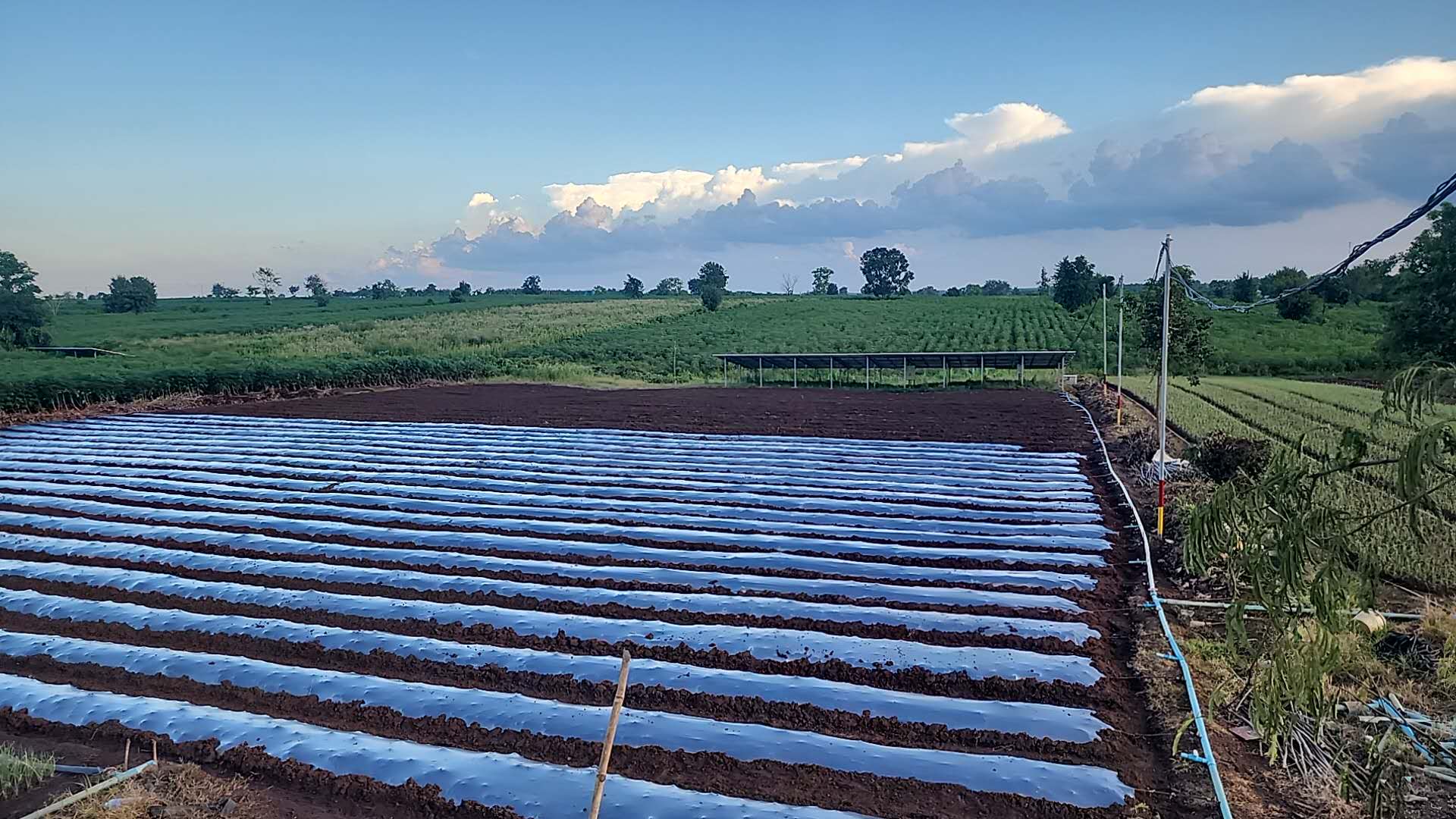

Product Application
Quality Control
VEIKONG solar pump VFDs have passed comprehensive test process
during manufacturing.
R&D test: test the hardware and software performance, to make
the design more optimization, makes sure the products have
excellent
performance before production;
Board test: test the performance of every board in our products, to
reduce product defective rate;
IQC: take strict quality inspection for every income components, to
ensure every income components are qualified.
Aging test: make the solar pump VFDs at run status, put them in the
aging test house at 50°C for 48 hours, to remove every unqualified
products.
Load test: the last and the most important test, add different load
to the solar pump VFDs, test their input and output value, to check
their
working performance. unqualified products will be removed from the
team.
By applying such strict testing process, VEIKONG ensures every
outgoing solar pump VFD has excellent quality.
