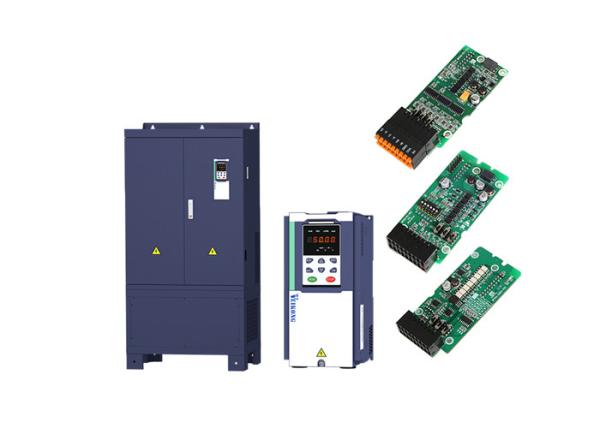

1hp 2hp 3hp 5hp 10hp 15hp Solar VFD For Submersible Pump AC DC Switching

Mppt efficiency 99% solar pump inverter 220v 0.75kw 1hp 1.5kw 2hp

Model Range

Support optional LCD keypad

Support optional GPRS Module

Product application pictures

Technical Questions and solutions

1. How to achieve Automatic start after stop?

If it is controlled by keyboard no need to set any parameter. If you want to control by external switch

As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop

2. How to use a float in the water tank to stop the pump if the tank is full?

If your float signal is digital signal Use float switch to short DI 1 and com and P00.06=1

3. How to design solar PV water pump system?
Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.

4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design

Shenzhen VEIKONG Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.

Veikong drives keeps following ISO9001 standard to manage and supervise quality.Our products have passed CE certification and other technical approval. To better meet customer requirements and market needs, Veikong drives keeps on upgrading new technologies and new products.

The customer is the source of enterprise.We are honored to put top priority on customers' requirements as well as achieving their requirements.Our products have been widely used in petroleum, chemical, melting, hoisting, electric power, building materials, water supply, plastics, textiles, printing, packing and other industries to create value for customers.
