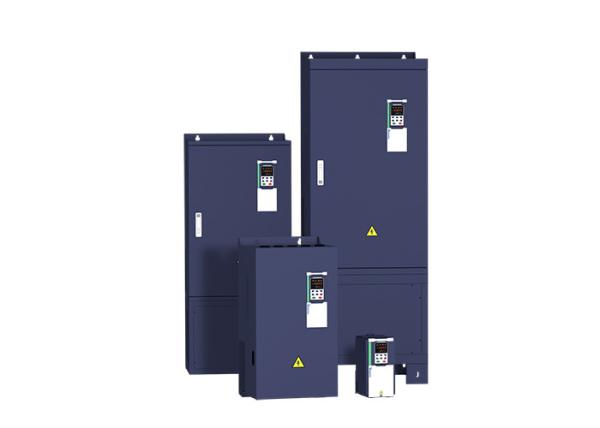

    Light / heavy load 7.5kw 11kw 15kw Vfd Inverter 3 Phase 380V

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VFD500
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

    Light / heavy load 7.5kw 11kw 15kw Vfd Inverter 3 Phase 380V

    7.5kw 11kw 15kw VFD 3 Phase 380V Variable Frequency Inverter AC Motor Drive
    VEIKONG hot selling VFD
    VFD500M is high performance vector control mini vfd
    VFD500 is high performacne general vfd
    VFD550 is high perfromance special vfd with positional control.
    VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors
    VFD500-PV is solar pump inverter.
    VFD510 is IP65 inverter

    Multifunctional and user friendly
    Deceleration over excitation function
    In many applications, the over-excitation function is set, the deceleration time is shortened by adjusting the motor output frequency and current, and the peripheral braking resistor and other accessories are reduced when the requirements for fast shutdown are met.

    Energy saving function
    It has excellent automatic energy saving function, only need to set the maximum energy saving target, as long as the operation meets
    the energy saving condition, it can enter the automatic skill state.
    By setting the VF function, it can realize the application of 1 drag and long distance control to meet the application of the transformation
    occasion.
    Undervoltage stall function
    When the system is powered off instantaneously, the motor is controlled by the regenerative energy during deceleration to
    maintain the inverter running for a short period of time and reduce the risk of idling under the instability of the grid.
    User-friendly operation
    Keyboard modes: standard mode (-bSC-), user defined mode (-USr-), check mode (-vrF-) and wizard mode (-GdE-), easy to switch.
    Optional powerful LCD operator with parameter setting, parameter macro, monitoring, parameter copying, mobile phone Bluetooth, inverter program upgrade and other functions.
    Excellent speed tracking
    Non-impact smooth start for motors that do not stop rotating


    Techincal Parameters:


    ItemSpecifiation
    InputInuput Voltage

    1phase/3phase 220V:200V~240V

    3 phase 380V-480V:380V~480V

    Allowed Voltage fluctuation range-15%~10%
    Input frequency50Hz / 60Hz,fluctuation less than 5%
    OutputOutput Voltage3phase:0~input voltage
    Overload capacity

    General purpose application:60S for 150% of the rated current

    Light load application:60S for 120% of the rated current

    ControlControl mode

    V/f control

    Sensorless flux vector control without PG card(SVC)

    Sensor speed flux vector control with PG card (VC)

    Operating modeSpeed control,Torque control(SVC and VC)
    Speed range

    1:100 (V/f)

    1:200( SVC)

    1:1000 (VC)

    Speed control accuracy

    ±0.5% (V/f)

    ±0.2% (SVC)

    ±0.02% (VC)

    Speed response

    5Hz(V/f)

    20Hz(SVC)

    50Hz(VC)

    frequency range

    0.00~600.00Hz(V/f)

    0.00~200.00Hz(SVC)

    0.00~400.00Hz(VC)




    VEIKONG VFD APPLICATION:


    Mode Range

    Model

    Power capacity

    (KVA)

    Input current

    (A)

    Output current(A)

    Adaptable Motor

    (KW)

    SIZEBrake Unit
    Heavy loadLight load
    Three phase: 380-480V,50/60Hz
    VFD500-R75GT4B1.53.42.54.20.75SIZE AInternal
    VFD500-1R5GT4B354.25.61.5
    VFD500-2R2GT4B45.85.69.42.2
    VFD500-4R0G/5R5PT4B5.910.59.413.03.7
    VFD500-5R5G/7R5PT4B8.914.613.017.05.5SIZE B
    VFD500-7R5G/011PT4B1120.517.023.07.5
    VFD500-011G/015PT4B1726.025.031.011SIZE CInternal
    VFD500-015G/018PT4B2135.032.037.015
    VFD500-018G/022PT4B2438.537.045.018.5SIZE D
    VFD500-022G/030PT4B3046.545.057.022
    VFD500-030G/037PT44062.060.075.030SIZE Eoption
    VFD500-037G/045PT45076.075.087.037
    VFD500-045G/055PT46092.090.0110.045SIZE F
    VFD500-055G/075PT475113.0110.0135.055
    VFD500-075G/090PT4104157.0152.0165.075SIZE G
    VFD500-090G/110PT4112170.0176.0210.090External
    VFD500-110G/132PT4145220.0210.0253.0110SIZE H
    VFD500-132G/160PT4170258.0253.0304.0132SIZE I
    VFD500-160G/185PT4210320.0304.0360.0160
    VFD500-185G/200PT4245372.0360.0380.0185SIZE J
    VFD500-200G/220PT4250380.0380.0426.0200
    VFD500-220G/250PT4280425.0426.0465.0220SIZE K
    VFD500-250G/280PT4315479.0465.0520.0250
    VFD500-280G/315PT4350532.0520.0585.0280SIZE L
    VFD500-315G/355PT4385585.0585.0650.0315
    VFD500-355G/400PT4420638.0650.0725.0355SIZE M
    VFD500-400G/450PT4470714.0725.0820.0400
    VFD500-450G/500PT4530800.0820.0/450SIZE N
    VFD500-500G/560PT4580880.0900.0/500
    VFD500-560G/630PT4630950.0980.0/560SIZE O
    VFD500-630GT471010801120./630SIZE O
    VFD500-710GT479012001260/710SIZE O
    Single phase :220V ,50/60HZ
    VFD500-R40GS21.36.03.25.60.4SIZE AInbuilt
    VFD500-R75GS22.411.05.68.00.75SIZE A
    VFD500-1R5GS23.515.08.010.61.5SIZE A
    VFD500-2R2GS25.525.010.614.02.2SIZE A
    VFD500-4R0GS27.735.017.023.04.0SIZE B
    VFD500-5R5GS28.953.025.031.05.5SIZE C
    VFD500-7R5GS21167.032.037.07.5SIZE C

    VFD500 parameter distribution list


    ClassificationParameter groupPage
    Common parameters00:Basic functionPage 30
    01:Frequency source selectionPage 32
    02:Start and stopPage 37
    03:Ramp and S curvePage 39
    04: Analog and pulse inputPage 41
    05:Analog and pulse outputPage 45
    06: Multi-function Digital input (DI)Page 46
    07: Multi-function Digital output(DO)Page 49
    08:Digital Output settingPage 51
    Motor control10:Encoder typePage 53
    11:Motor1 parmeterPage 54
    12:Motor1 VFcontrol parameterPage 56
    13:Motor1 Vector controlparameterPage 58
    14:Torque controlPage 59
    16:Energy saving controlPage 61
    Display and protection20:User-defined parametersPage 62
    21:Keypad and displayPage 63
    22:AC Drive configurationPage 65
    23:Drive protection function settingPage 67
    24:Motor protection parameterPage 70
    25:Fault tracking parameterPage 72
    26:Fault recording parameterPage 72
    27:Monitoring parameterPage 74
    Communication30:Modbus communicationPage 75
    Application40:Process PID FunctionPage 77
    41:Sleep functionPage 81
    42:Simple PLCPage 82
    43:Programmable delay unitPage 84
    44:Comparator and logic unit/controllerPage 86
    45:Multifunction counterPage 90
    Motor 260:Motor2 basic parameterPage 91
    61:Motor2 parameterPage 91
    62:Motor2 VF control parameterPage 92
    63:Motor2 vector control parameterPage 92
