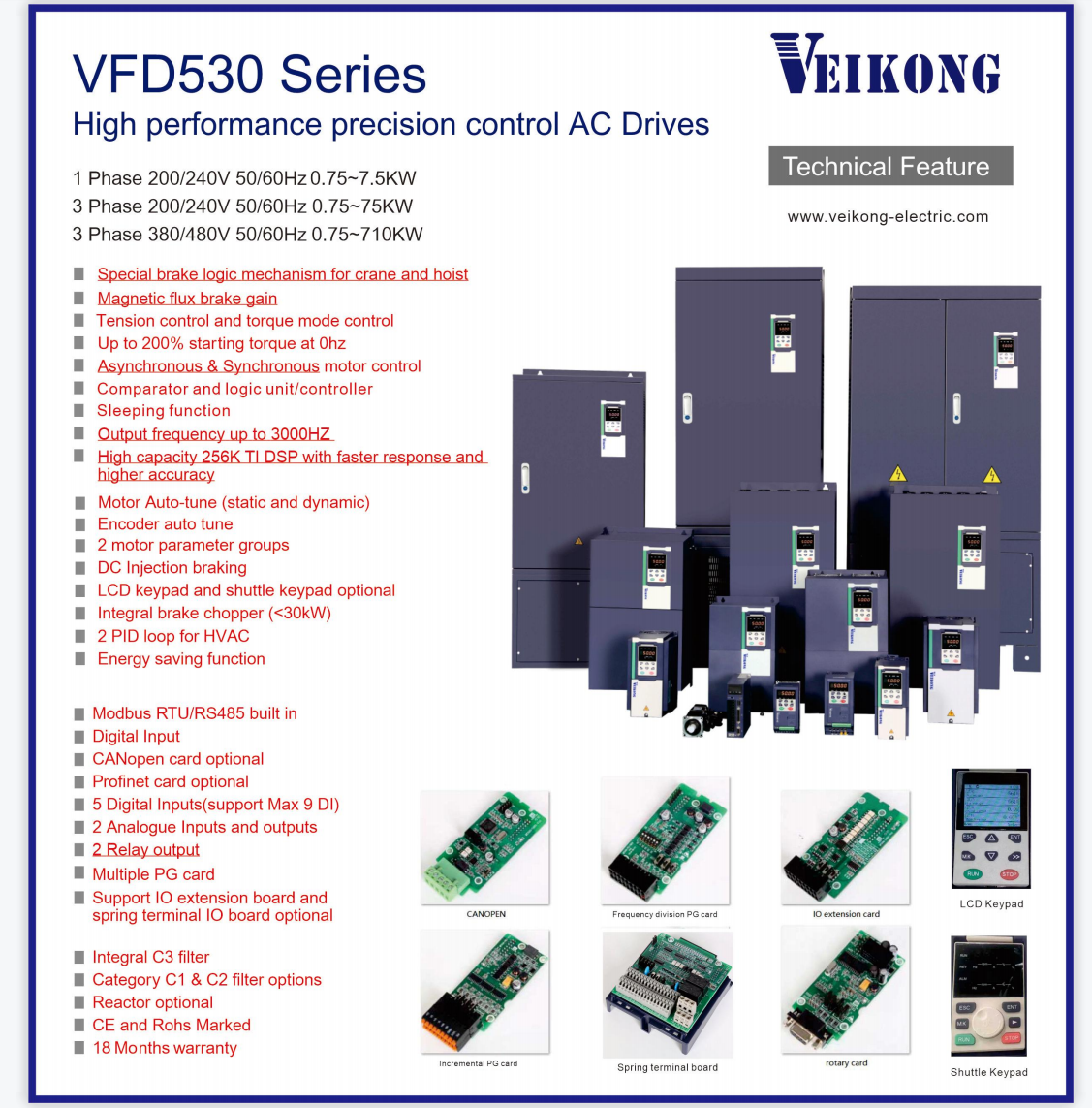

| Item | Specifiation |
| Input | Inuput Voltage | 1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity | General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
| Control | Control mode | V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) |
| Speed range | 1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
| Speed control accuracy | ±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
| Speed response | 5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
| frequency range | 0.00～2000.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
| Input frequency resolution | Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
| Startup torque | 150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
| Torque control accuracy | SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
| V/f curve | V / f curve type: straight line, multipoint, power function, V / f
separation; Torque boost support: Automatic torque boost (factory setting),
manual torque boost |
| Frequency giving ramp | Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s
~ 60000s |
| DC bus voltage control | Overvoltage stall control: limit the power generation of the motor
by adjusting the output frequency to avoid skipping the voltage
fault;
Undervoltage stall control: control the power consumption of the
motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by
adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by
adjusting the output frequency, to avoid jump undervoltage fault |
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop |
| Maincontrol function | Jog control, droop control, up to 16-speed operation, dangerous
speed avoidance, swing frequency operation, acceleration and
deceleration time switching, VF separation, over excitation
braking, process PID control, sleep and wake-up function, built-in
simple PLC logic, virtual Input and output terminals, built-in
delay unit, built-in comparison unit and logic unit, parameter
backup and recovery, perfect fault record,fault reset, two groups
of motor parametersfreeswitching, software swap output wiring,
terminals UP / DOWN |
| Function | Keypad | LED Digital keyboard and LCD keypad(option) |
| Communication | Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT) |
| PG card | Incremental Encoder Interface Card (Differential Output and Open
Collector), Rotary transformer Card |
| Input terminal | Standard: 5 digital input terminals, one of which supports high-speed pulse
input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA
current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input |
| Output terminal | standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0
~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~
10V voltage output; Option card: 4 digital output terminals |
| Protection | Refer to Chapter 6 "Troubleshooting and Countermeasures" for the
protection function |
| Environment | Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas,
oil smoke, vapor, drip or salt. |
| Altitude | 0-3000m.inverter will be derated if altitude higher than1000m and
rated output current will reduce by 1% if altitude increase by 100m |
| Ambient temperature | -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is
between 40°C and 50°C)Rated output current decrease by 1.5% if
temperature increase by 1°C |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Storage temperature | -20°C ~ +60°C |
| Others | Installation | Wall-mounted, floor-controlled cabinet, transmural |
| Protection level | IP20 |
| cooling method | Forced air cooling |
| EMC | CE ROHS | Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment |
