High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD

Ask Lasest Price
Brand Name :	VEIKONG
Model Number :	VFD200A
Certification :	CE ROHS
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	15000pcs per Month
Delivery Time :	3 days, depend on the order
MOQ :	Negotiable

Add to Cart

Product Details
Company Profile

High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD

11kw 15hp converter 220V input 380v output vfd variable frequency drive

Technical features

1, Using DSP as the core of control unit to achieve high-speed and high-performance control

2, Motor parameter self-learning, intelligent setting to the optimal control model

3, High performance IPM module,protection function such as under voltage, overcurrent, overtemperaature,over the ground short circuit etc.

4, The unique EMC design minimizing the pollution to power.

Capacity range

Power range: 0.75-11kw power range

Frequency range: 0.00-400.00HZ

Voltage level:single phase 220V/ three phase 380v

Product details

High speed high performance control DSP core control unit Simple PLC Parameter auto-tuning

Low frequency high torque strong performance of vector control

Strong and weak electricity,built-in 485

Separately strong and weak electricity, reduction interference from high voltage part of weak current

Programming logic controller for more than 485 section frequency automatic control

Avago photoelectric coupler Adopted USA Avago company

Photoelectric coupler that was not in the power of optical coupling isolation with high stability , high reliability

VFD200A technical data:

Item		Specifications
Standard functions	Maximum frequency	Vector control:0～500Hz V/F control: 0～500Hz
	Carrier frequency	0.5kHz～16kHz (The carrier frequency is automatically adjusted based on the load features.)
	Input frequency resolution	Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025%
	Control mode	Sensor-less flux vector control (SFVC) Closed-loop vector control (CLVC) (+PG Card) Voltage/Frequency (V/F) control
	Startup torque	0.5Hz/150%(SVC)；0Hz/180%(FVC)
	Speed range	1:100 (SVC)	1:1000 (FVC)
	Speed stability accuracy	±0.5%(SVC)	±0.02%(FVC)
	Torque control accuracy	±5%(FVC)
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current P type: 60s for 120% of the rated current, 3s for 150% of the rated current
	Torque boost	Auto boost; Manual boost: 0.1%~30.0%

Standard functions	V/F curve	Straight-line V/F curve Multi-point V/F curve N-powerV/F curve (1.2-power, 1.4-power, 1.6-power, 1.8- power, square)
	V/F separation	2 types: complete separation; half separation
	Acceleration/deceleration curve	Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.00s~65000s
	DC braking	DC braking frequency: 0.00 Hz ~ maximum frequency Braking time: 0.0~100.0s Braking trigger current value: 0.0%~100.0%
	JOG control	JOG frequency range: 0.00Hz~50.00 Hz JOG acceleration/deceleration time: 0.00s~65000s
	Built-in PLC, multiple speeds	It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states
	Built-in PID	It realizes closed loop control system easily.
	Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage fluctuation.
	Overvoltage/ Over current stall control	The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage/over current.
	Rapid current limit function	It can auto limit running current of frequency inverter to avoid frequently tripping.
	Torque limit and control	(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process. Torque control can be implemented in the VC mode.

Item		specification
Individualized functions	High performance	Control of asynchronous motor is implemented through the
	Instant power off not stop	The load feedback energy compensates the voltage reduction so that the frequency inverter can continue to run for a short time.
	Rapid current limit	To avoid frequently over current faults of the frequency inverter.
	Virtual IO	Five sets of virtual input and output for simple logic control
	Timing control	Time range: 0.0~6500.0 minutes
	Multi-motor switching	Four sets of motor parameters for four motor switching control
	Multiple communication protocols	Currently supports communication bus via Modbus-RTU and later will support PROFIBUS-DP, CANopen, etc.
	Motor overheat protection	The optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to
	Multiple encoder types	It supports incremental encoder and encoders such as differential encoder, open-collector encoder, resolver, UVW encoder, and SIN/ COS encoder.
	Running command	key panel
	Frequency giving	There are 10 kinds frequencygiving: digital setting, analog voltage setting, analog current setting, pulse setting, serial communication port setting, panel potentiometer, etc. You can switch between these giving in various ways.
run	Auxiliary frequency giving	There are 10 kinds auxiliary frequency giving. It can implement tiny tuning of auxiliary frequency and frequency synthesis.
run	Input terminal	Standard: 5 digital input (DI) terminals, one of which supports up to 100 kHz high-speed pulse input 2 analog input (AI) terminals, support 0V~10 V voltage input or 0 mA~20 mA current input

	Output terminal	Standard 1 high-speed pulse output terminal (open-collector) that supports 0–100 kHz square wave signal output 1 digital output (DO) terminal 1 relay output terminal 2 analog output (AO) terminals, support0 mA~20 mA current output or 0 V~10 V voltage output. Expanding capacity:
Item		Specification
Display	LED display	It displays the parameters.
	Parameters copy	It can implement copy parameters function by PC software.
	Key locking and function selection	It can lock the keys partially or completely and define thefunction range of some keys so as to prevent misoperation.
	Protection mode	Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, under-voltage protection, overheat protection and overload protection, etc.
Environment	Installation location	Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C~ +40°C (derated if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C ~ +60°C

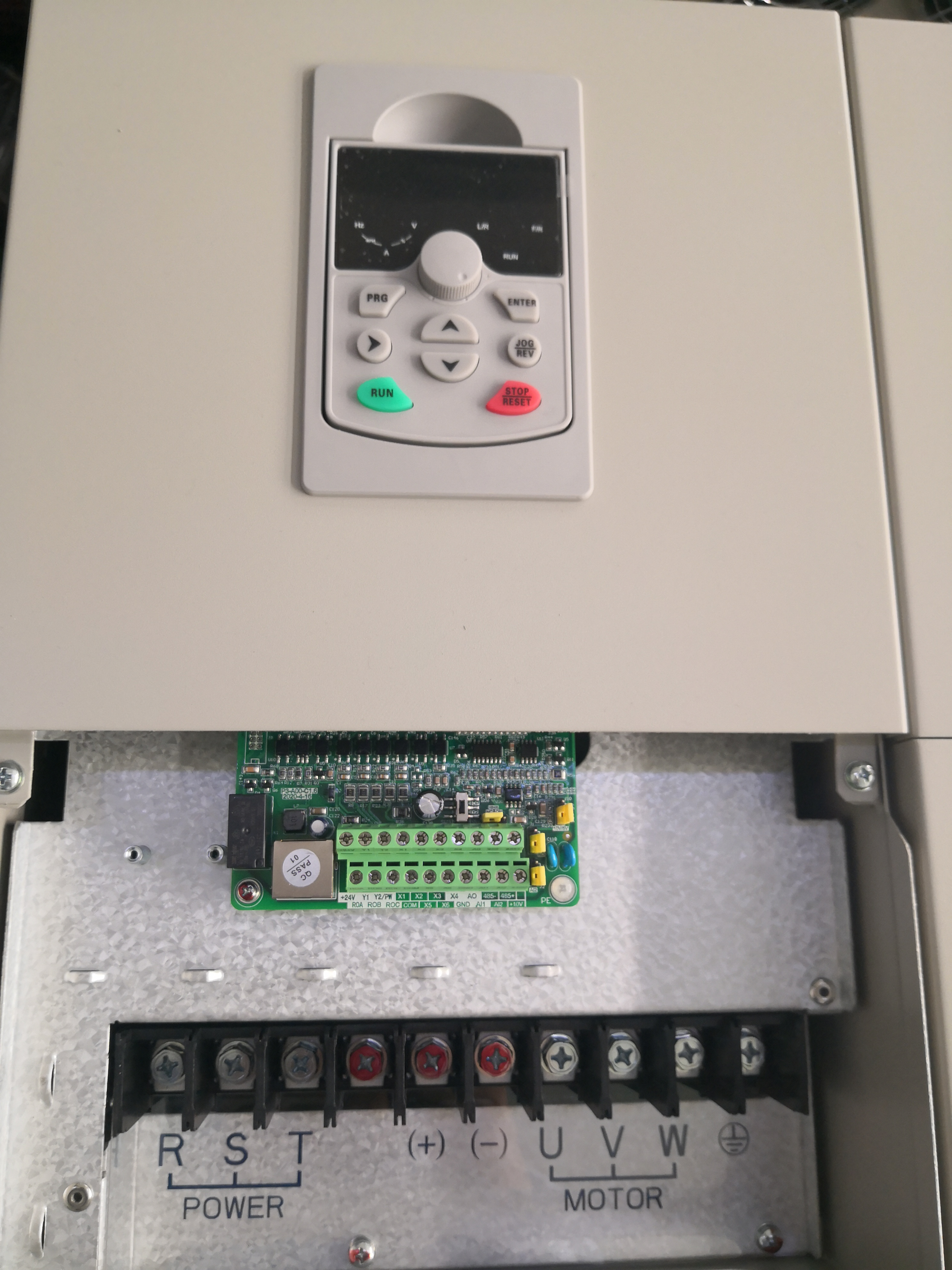

VFD200A picture:

Connect wire diagram:
