    65A 78A 95A 115A AC Drive Inverter Reactor High Linearity

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VKS
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

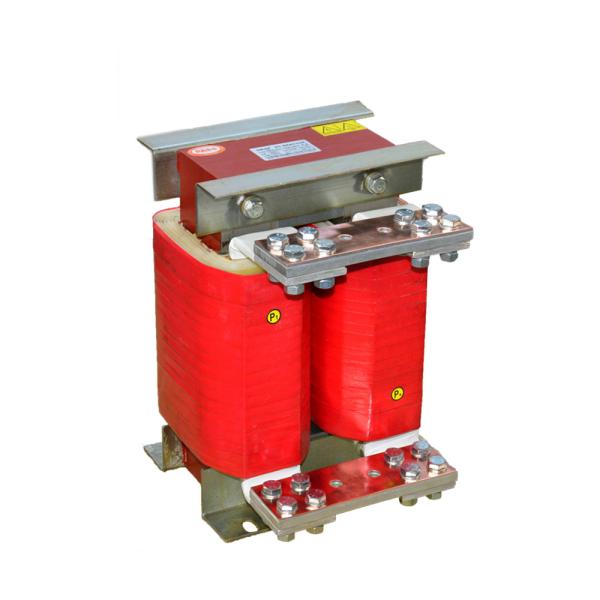

    65A 78A 95A 115A AC Drive Inverter Reactor High Linearity

    65A 78A 95A 115A DC Reactor For Variable Frequency Inverter And AC Drive


    Product Feature


    High linearity, high over-load capability, high voltage dip and low losses. Vacuum impregnation by special resin material provides better insulation function, high voltage stress, low noise and long lifetime. The number and position of air gaps are selected in order to minimize losses in magnetic core and windings. Limbs, yokes and air gaps are blocked by adhesives and pressing elements designed to reduce acoustic noise. The reactors are designed with natural air cooling.


    Product Parameters


    Voltage Range

    DC500V-1000V

    Dielectric Strength

    Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s

    Insultalon Resistance

    Core-Winding, DC 1000V, Resistance > 100M ohm

    Reactor's noise

    less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)

    Standard

    GB 19212.1-2008 GB/T 1094.6-2011

    Product Size
