AC output Reactor choke For solar pump system for ac frequency drive

LOAD REACTOR AC 3-PHASE 400V ,1%(UK), RATED CURRENT 20A ,7.5KW

Company info

At VEIKONG, we are revolutionizing the technology industry with our cutting-edge products that are changing the game for businesses worldwide. Since our establishment in 2014, we have experienced tremendous growth, expanding our range of products to provide the most comprehensive solutions to our clients' needs.

Our product portfolio includes Variable Frequency Drives, Photovoltaic Solar Pump Inverters, Soft Starters, and related accessories such as braking units and braking resistors. Our products are designed with the latest technological advancements to provide the ultimate performance, energy efficiency, reliability, and safety, which exceed our clients' expectations.

At VEIKONG, we are dedicated to providing exceptional customer service, and our products come with a quality assurance guarantee, demonstrating our commitment to customer satisfaction. Our team of experts works closely with our clients, understanding their specific needs and challenges to provide tailored, cost-effective solutions that optimize their operations.

Our Variable Frequency Drives offer precise control of motor speed and torque, resulting in energy savings and enhanced performance. Our Photovoltaic Solar Pump Inverters provide reliable and efficient control of solar water pumping systems, reducing energy costs and environmental impact. Our Soft Starters reduce stress on equipment, extend their lifespan, and enhance reliability, making them the ideal solution for smooth startup.

With our related accessories such as braking units and braking resistors, our clients can expect optimal performance, safety, and reliability for their industrial equipment.

In conclusion, VEIKONG is a game-changer in the technology industry, providing superior solutions that offer a better user experience, energy efficiency, and reliability. With our commitment to customer satisfaction, cutting-edge technology, exceptional customer service, and quality assurance guarantee, VEIKONG is the ultimate choice for businesses seeking technologically advanced, cost-effective solutions.

Description of Load Reactor:

VKS-OCL series Load Reactors are placed in series with electrical equipment to introduce a specific controlled impedance to the AC circuit. This series are applied at AC drive output side to suppress inrush voltage, reducing inrush and peak current, improving real power factor, restraining grid harmonics and improving the output current waveform. Line Reactor also known as Output Reactor.

Material Features of Load Reactor:

Flexible Meterial Choice:Selection of silicon steel,ferrite magnetic material of amorphous core according to the frequency of application;
Excellent Property:Due to foll winding structure,small DC resistance, strong resistance to electromagnetic force, good overload ability in short time
Reliable Performance:F-class insulation materials are used, which ensure products maintain reliable performance in harsh working condition.
Low Noise: Designed with low magnetic flux density,the reactors of high linearit.With powerful overload sheets, the reactor noise is low

Characteristic of this series:

Rated operating power: 380V/690V/1140V
Operating frequency: 50/60Hz
Current range: 5-1600A
Operating ambient temperature: -25℃-50℃
Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory)
Insulation Resistance: Core-Winding,DC 1000V,Resistance >100M ohm
Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally
Protection class: IP00
Insulation class: F/H
Standard: GB 19212.1-2008GB/T1094.6-2011

Application of Load Reactor:

For inverter and motor

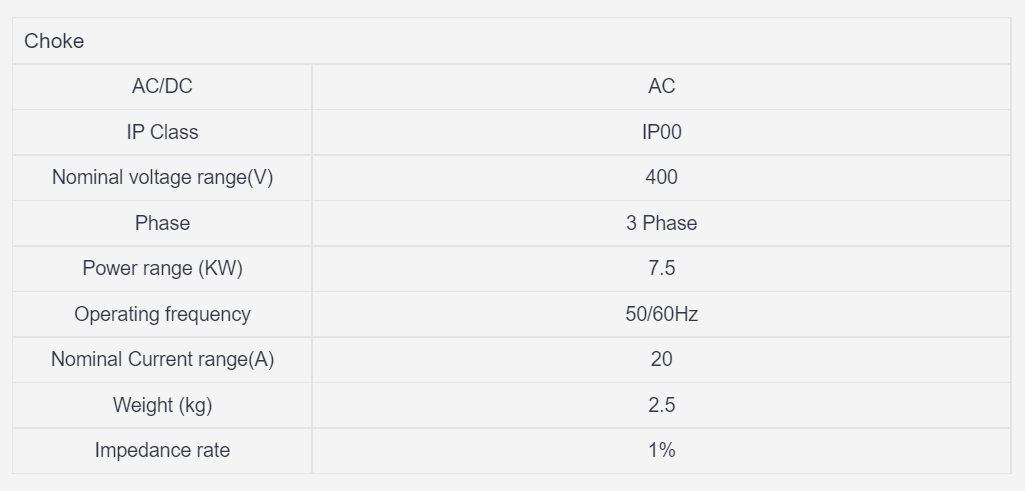

Product Parameters

Product Size
