Brand Name : | VEIKONG |
Model Number : | VFD500-PV |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 15000pcs per Month |
Delivery Time : | 3 days, depend on the order quantity |
5.5KW 7.5KW 11KW 15KW Solar Pump Inverter Controller With LCD
Display
VFD500-PV Solar pump frequency inverter
1. Cover voltage levels 220V AC and 380V AC.
Support single-phase 220V and three-phase 220V/380V pumps, the
power from 0.4KW to 37KW.
2. Easy to use
The inverters automatically start or sleep only after being
connected to solar battery panels without any parameter setting.
3. Highly reliable for using multiple protective measures
Including PV over-voltage protection, PV polarity reverse warning,
and auto derating against over-temperture, which extend product
life.
4. Use advanced MPPT algorithms,ensuring that the solar power
tracking efficiency reaches 99%
5. Models of 2.2kW or lower can be configured with boost module,
meeting low-voltage work requirements. This reduces the use of
solar battery panels and therefore the cost.
6. VFD500-PV series can implement auto switch between solar input
and grid input by configuring the boost or auto switching
cabinet(meeting lightning protection requirements), implementing
24-hour unattended work.
7. Support the configuration of the GPRS module, which implements
remote parameter viewing and control by using the mobile APP.
8.Support the cabinet solution for level IP54.
220V | 380V | |
Max input DC voltage | 450V | 810V |
DC voltage range | 150~450VDC | 300~810VDC |
Normal working DC voltage | 260V-400V | 400V-650V |
Recommended input mppt voltage | 330V | 550V |
MPPT efficiency | >99% | |
Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
Output frequency range | 50/60Hz | |
Max efficiency of the machine | 99% | |
Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
Cooling method | Air cooling | |
Protection degree | IP20/IP21 | |
Altitude | Below 1000m; above 1% for every additional 100m. | |
Standard | CE/ROHS |
Optional GPRS monitoring device
1. VEIKONG solar pump inverter GPRS system is a professional
monitoring system platform managing solar pump plants.
2. It supplies water volume monitoring and operation of inverter
from anywhere at anytime.
3. It’s convenient to visit real time and historical data via web
or IOS & Android APP anytime and anywhere.
4. This easy-to-use platform makes monitoring of solar pump systems
simple and convenient, far reducing operate time and monitoring
costs as well.

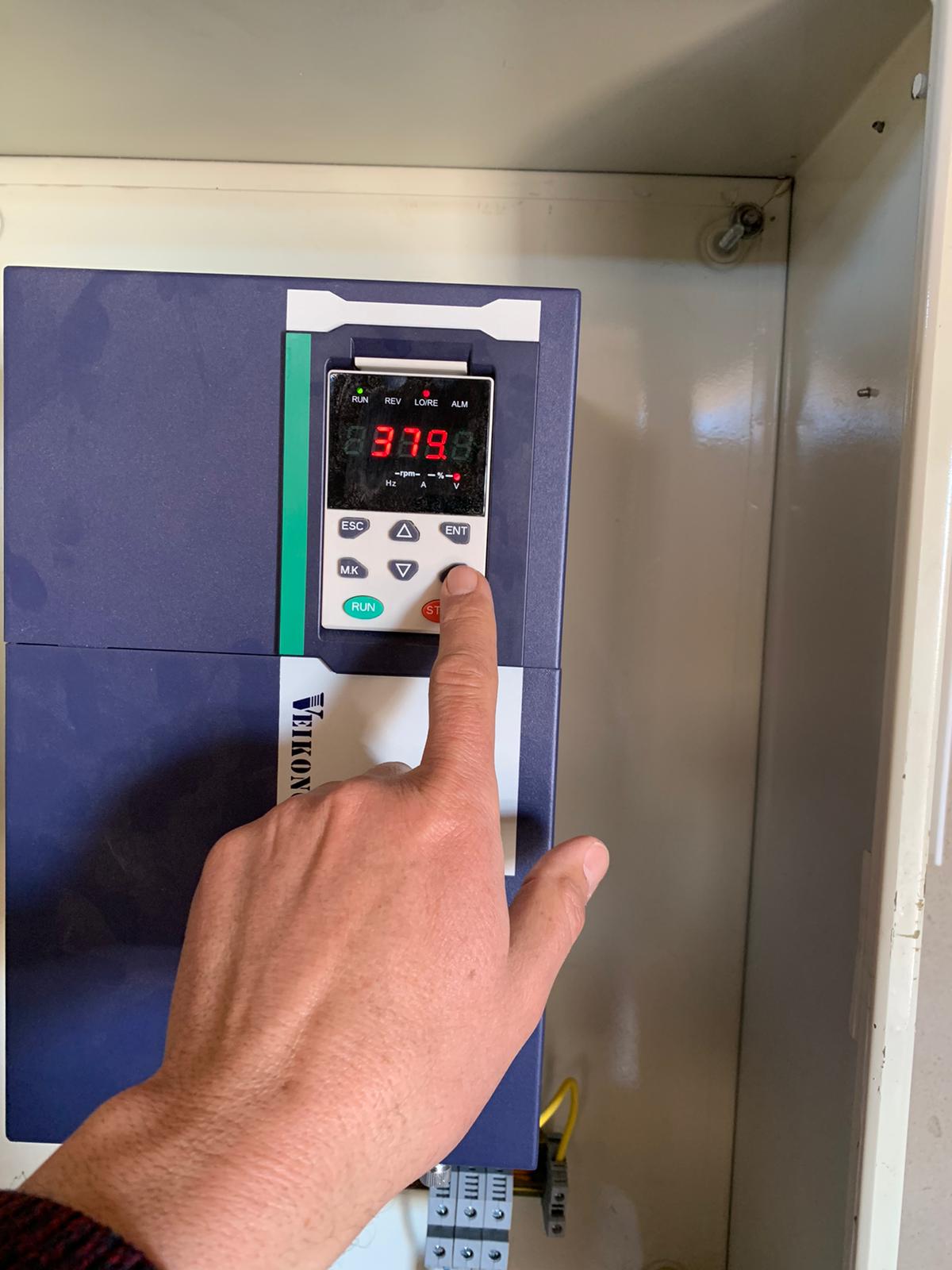

Product Application
FAQ
1. What is the MPPT efficiency value of your product?
Our solar pump inverter with Auto-Mppt more than 99% and user
friendly no need set any parameters, just connect with solar panels
and pumps, it running automatically.
2. Does your inverter support AC and DC input?
Yes, our solar pump inverter support AC and DC input, you also can
use them at the same time.
3. Are all inverters original?
Of course, we only do original product, because we have a strong
and professional technical team.
![]() |
