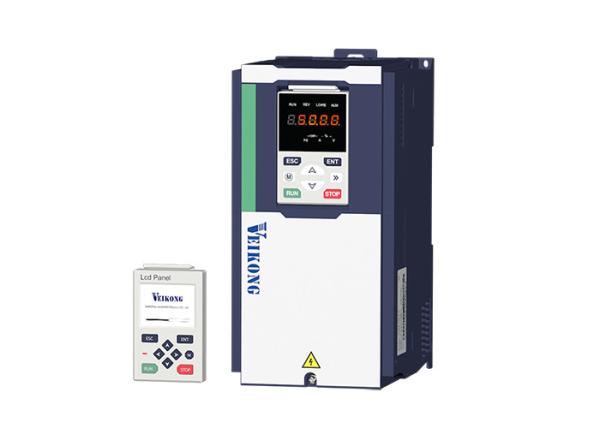

VFD530 Series Variable Frequency Inverter Compatible For IM And
PMSM
VFD530 Series Variable Frequency Inverter Compatible For Both IM
And PMSM
1. Product features of VFD530 series high performance control AC
Drives
1) Special brake logic mechanis, for crane and hoist. Some with
special software also can used on elevator.
2) Compatible for both IM and PMSM, which supports to use in
special applications.
3) Support both static and dynamic motor auto-tune
4) 5 Digital inputs ( support MAX 9 DI), besides, we have IO 2 for
options with 7 DI
5) Support 2 PID loop for HVAC system
2. VFD530 series lifting adjustment explanation
Set the function code P51.00=1 for open-loop hoisting without
encoder feedback. At this time, the following parameters are set
| Function code | description |
| P00.06=1 | Terminal control |
| P03.01=3.00 | acceleration time is 3s |
| P03.02=3.00 | deceleration time is3s |
| P23.10=10 | Turn off the overvoltage stall function |
| P51.02 =2.00 | Up release brake frequency is 2.00hz |
| P51.05=2.00 | Down release brake frequency is2.00hz |
Set P59.00=2 closed-loop lifting, with encoder feedback, the
following parameters are set
| Function code | description |
| P00.06=1 | Terminal control |
| P03.01=3.00 | acceleration time is 3s |
| P03.02=3.00 | deceleration time is3s |
| P23.10=10 | Turn off the overvoltage stall function |
| P51.02 =0.20 | Up release brake frequency is 0.20hz |
| P51.05=0.10 | Down release brake frequency is 0.10hz |
3. VFD530 series basic specification
| Item | Specifiation |
| Model number | VFD530 series |
| Suitable Motor | Asynchronous and synchronous |
| Applications | Crane hoist and high precision control machines |
| Display options | LCD LED shuttle display for options |
| Warranty | 18 months, if anything broken down during this period, we will be
responsible for that |
| Sells areas | Middle east, south east, Africa, South America etc |
| Control | Control mode | V/f control Sensorless flux vector controlwithout PG card(SVC)
Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) |
| Speed range | 1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
| Speed control accuracy | ±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
| Speed response | 5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
| frequency range | 0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
| Input frequency resolution | Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
| Startup torque | 150%/0.5Hz(V/f) 180%/0Hz(VC) |
| Torque control accuracy | SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
| V/f curve | V / f curve type: straight line, multipoint, power function, V / f
separation; Torque boost support: Automatic torque boost (factory
setting), manual torque boost |
| Frequency giving ramp | Support linear and S curve acceleration and deceleration; 4 groups
of acceleration and deceleration time, setting range 0.00s ~ 60000s |
| DC bus voltage control | VdcMax Control: Limit the amount of power generated by the motor by
adjusting the output frequency to avoid over-voltage trip; VdcMin
control: Control the power consumption of the motor by adjusting
the output frequency, to avoid jump undervoltage fault |
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop |
| Main control function | Jog control, droop control, up to 16-speed operation, dangerous
speed avoidance, swing frequency operation, acceleration and
deceleration time switching, VF separation, over excitation
braking, process PID control, sleep and wake-up function, built-in
simple PLC logic, virtual Input and output terminals, built-in
delay relay, built-in comparison unit and logic unit, parameter
backup and recovery, perfect fault record, fault reset, two groups
of motor parameters freely switch, software swap output wiring,
terminals UP / DOWN |
3. Veikong Company introduction
Veikong is a professional VFD manufacturers in China for more than
20 years, we have advanced R&D groups and devices to provide
better products year by year.
Besides, instant and satisfying technical support is also very
important for us to help each of our clients have a nice buying
experience.
We are so pleased to help each of our clients to solve problems
when choosing an appropriate, how to expend the market and any
other problems related to the VFD.
4. VFD530 used applications
5. VFD530 series download center
VEIKONG
VFD530 HP AC DRIVE USER MANUAL V1.0.pdf
