    380v 400v 440v 5.5kw To 500kw 3 Phase Online Motor Soft Starter Cabinet Unique Connectors

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VKS6000
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

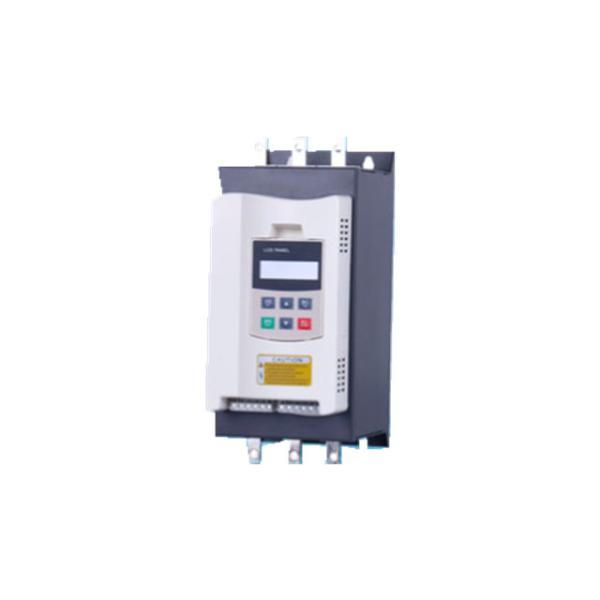

    380v 400v 440v 5.5kw To 500kw 3 Phase Online Motor Soft Starter Cabinet Unique Connectors

    380v 400v 440v 5.5kw To 500kw 3 Phase Online Motor Soft Starter Cabinet


    Product Feature


    1. Remote monitor installation


    Wth an optional operator panel mounting kit, the operator panel is easily mounted outside the cabinet. If you install multiple soft starter in a single cabinet, this allows for centralized control in one place, with all the relevant information. You can also install multiple monitors side-by-side to quickly diagnose problems. (After installation the protection level is IP65.)


    2. Stop smoother


    THe CPU also provides precise control of soft stops for applications that require smoother soft stops.


    CPU for small inertia loads, such as pumps and conveyors, can greatly reduce or even eliminate the water harmmer effect.


    3. Detachable connectors and unique connectors


    Plug-in control wiring board, it is easy to install. Just unplug each terminal block, then plug the line back into the terminal block.


    VKS-6000 can use the unique flexible cable routing effective arrangement of the cable, the cable can be from the top, left or bottom line.


    Technical Specification

    Item

    Description

    Input Power Supply

    Input Voltage

    Three-phase 380V/480V/660 AC

    Frequency

    50/60Hz

    Adaptive Motor

    Squirrel-cage three-phase asynchronous motor

    Starting Times

    It is recommended not to exceed 20 times per hour.

    Control Mode

    (1) Operation panel control.

    (2) Operation panel + external control.

    (3) External control.

    (4) External control + COM control.

    (5) Operation panel + external + COM control.

    (6) Operation panel + COM control.

    (7) COM control.

    (8) No start or stop operation.

    Start Mode

    (1) Current-limiting to start.

    (2) Voltage ramp to start.

    (3) Torque control + current-limiting to start.

    (4) Torque control + voltage ramp to start.

    (5) Current ramp to start.

    (6) Voltage current-limiting double closed-loop start.

    Stop Mode

    (1) Soft stop.

    (2) Free stop.

    Protective Function

    (1) Open loop protection for external instantaneous stop terminals.

    (2) Over-heat protection for soft starter.

    (3) Protection for too long starting time.

    (4) Input open phase protection.

    (5) Output open phase protection.

    (6) Unbalanced three-phase protection.

    (7) starting over current protection.

    (8) Running overload protection.

    (9) Under voltage protection for power voltage.

    (10) Overvoltage protection for power voltage.

    (11) Protection for fault parameter setting.

    (12) Load short circuit protection.

    (13) Auto restart or incorrect wiring protection.

    (14) Incorrect wiring protection of external control stop terminals.

    Ambient

    Place to be used

    Indoor location with good ventilation free from corrosive gas and conductive dust.

    Altitude

    Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

    o

    Temperature

    -20 +45 C

    Humidity

    90%RH without dew condensation.

    Vibration

    <0.5G

    Structure

    Protection Class

    IP20

    Cooling Pattern

    Fans cooling.


    Product Application




    FAQ


    1. Do you accept customized order?


    Yes, we do.


    2. Can I have a sample order?


    Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    3. How to ship?


    Please inform us of your requirements, whether it is by sea, air or express, it is all right for us. We have very professional logistics channels to provide the best transportation cost, service and guarantee.
