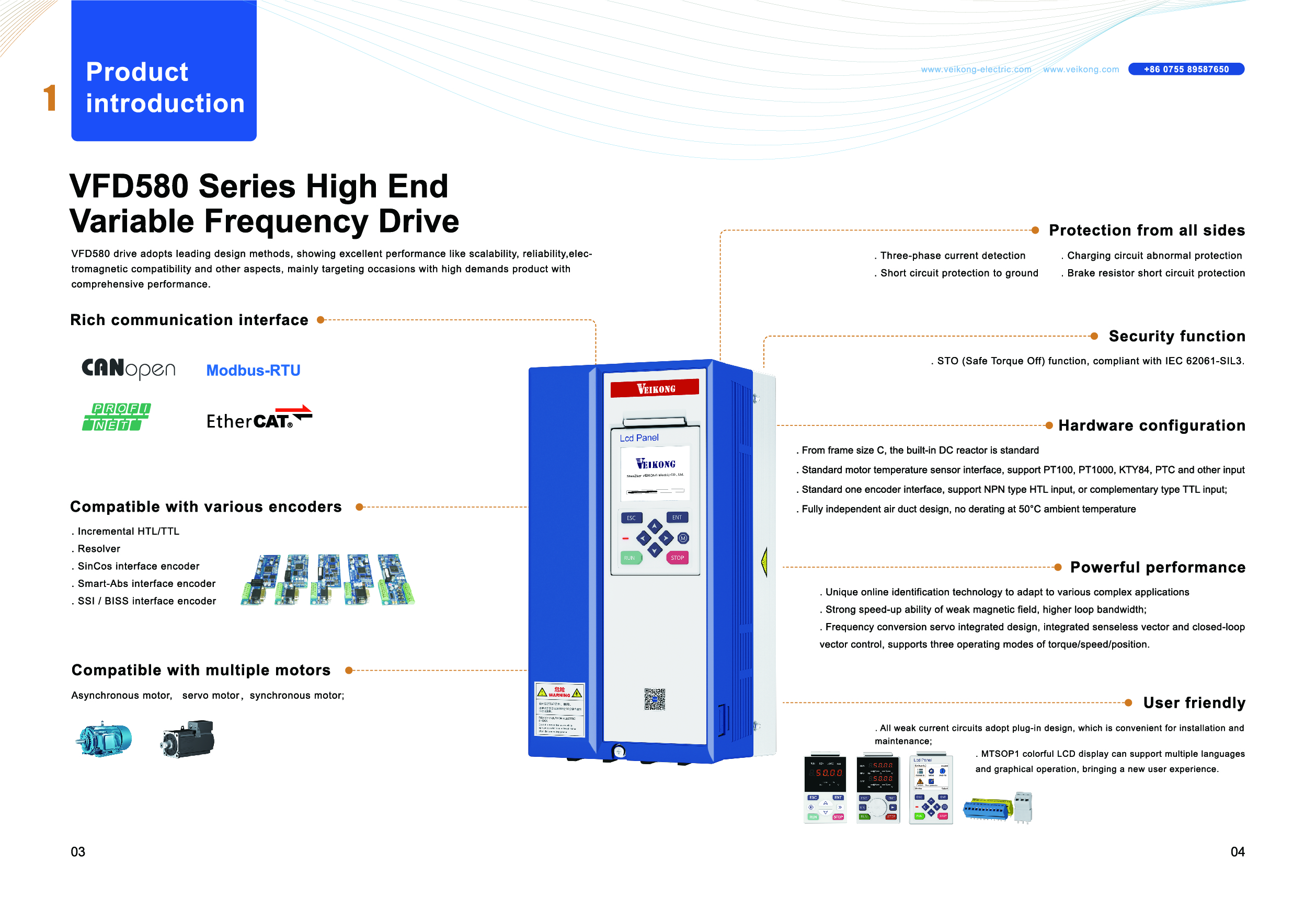

Product Description:
Veikong has recently launched the VFD580 series that has made it
stand out from other competitors in the market. Not only is it
compatible with both IM and PMSM motors, but it also has practical
functions that ensures safety and versatility in its applications.
This series offers multiple communication methods, such as RS485,
Canopen, and Profinet, which makes it convenient for users to
integrate into different systems. Additionally, the VFD580 series
can be used for some special applications, such as fly shear, to
expand its scope of usage.
In conclusion, the VFD580 series is an efficient, safe, and
user-friendly device that promises excellent results, making it
suitable for various industrial applications.
Features:
01 Drive three-phase AC asynchronous motor and permanent magnet
synchronous motor, andsupports three control modes of speed, torque
and servo position.
02 Excellent asynchronous and synchronous motor SVC algorithm can
control the speed and torqueof the motor with hiah precision even
without encoder feedback. and the low-frequency torquecontrol
accuracy is better than that of imported brands.
High reliability
03 15KW and above models are equipped with built-in DC reactor as
standard.
04 37KW and below are equipped with built-in braking unit
asstandard, and models below 90KW are equipped with brake
circuitshort circuit protection function.
16355
05 The whole series is equipped with buffer relay
(contactor)abnormality protection circuit as standard.
VFD580 series control circuit terminals
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input | VREF | Analog input reference voltage | VREF can choose 10V or 15V, switch between 10V and 15V of VREF
throughthe "VREF" toggle switch, the factory default is 10V 10V3%, |
| 10V+3%,15V+3% |
The maximum output current is 30mA, that is, the recommended
external
potentiometer resistance range: 1K~51K |
| GND | Analog input ground | Internally isolated from COM. 0V |
| AI 1 | Analog input 1 | Only input voltage:-10V~10V :Impedance 20K |
Applications:
1.The roving machine is a type of an automated loom used for
weaving complex patterns in fabric form. It is characterized by its
enhanced capability to produce more intricate fabric patterns and
colors with its automated operation, as it is integrated with
several functions for processing of woven fabrics.
2.Warping machines are mainly used for the preparation of weaving
warps in the traditional weaving industry. It is equipped with
several processes for winding the weaving threads onto the beam for
the desired length, thereby speeding up the process of preparing
the warp.
3.Servo screw presses are a type of electric press force which has
the capability to generate a predefined pressing force accurately
over a given stroke length. These presses provide a variable speed
motor drive and can be used for applications such as forging,
plastic forming, and sheet metal forming.
4.High-speed electric spindle machine tools are used for
applications such as high-precision machining or cutting of hard
materials. They are capable of generating speeds of up to 25,000
rpm with their air bearing spindles, making them suitable for
production of complex and intricate shapes in high precision and
accuracy.
5.Friction welding machines are mainly used for joining materials
with a repeated cold pressure-welding process that produces
friction heat through pressure and speed. This process is useful in
a wide range of applications, such as aerospace, automotive,
domestic appliances and heavy machining of metals.
6.Flying shears are used in various manufacturing industries to cut
and trim wide strips of metal in a continuous manner. The flying
shear consists of two overlapping blades mounted on an overhead
beam or carriage, which is powered by pneumatic, hydraulic or
electrical power. It can be used to cut strips of different widths
and lengths in an efficient manner.
Customization:
Welcome to Veikong VFD580 Variable Frequency Inverters
Veikong VFD580 Variable Frequency Inverters offers a complete range
of power from 2.2 to 315kw, with HD1 voltage range from 15 to 30v.
This product supports Position Command Internal Position, Pulse
Position Input, CANopen Position Command, EtherCAT Position Command
(VFD586) and Position Fully Closed Loop Mode. The GPRS function is
optional.
Veikong VFD580 Variable Frequency Inverters is compatible for both
IM and PMSM with the capability of TCP communication. It’s also
suitable for flying shear application.
What’s more, the new LCD support Spanish, Russia, English and
Chinese language choice.
Support and Services:
Technical Support and Services for Variable Frequency Inverters
At Variable Frequency Inverters, we provide comprehensive technical
support and services that are tailored to meet the needs of our
clients. Our experienced team of experts provides the highest level
of quality and reliability, ensuring that our customers receive the
best possible service.
Our services include:
- Troubleshooting and repair of Variable Frequency Inverters
- Installation and configuration of Variable Frequency Inverters
- On-site maintenance and support
- Remote technical support
- Software and firmware updates
- Product training and education
At Variable Frequency Inverters, we strive to provide the highest
quality technical support and services for our customers. Our team
of experts is available to answer any questions you may have and
assist you with the installation and maintenance of your Variable
Frequency Inverters.
FAQ:
- Q: What is the Brand Name of Veikong Variable Frequency Inverters?
- A: The Brand Name is Veikong.
- Q: What is the Model Number of Veikong Variable Frequency
Inverters?
- A: The Model Number is VFD580.
- Q: Where is the Place of Origin of Veikong Variable Frequency
Inverters?
- A: Veikong Variable Frequency Inverters are made in China.
- Q: What is the working principle of Veikong Variable Frequency
Inverters?
- A: Veikong Variable Frequency Inverters use a variable frequency
drive to control the speed of an alternating current motor by
varying the frequency and voltage of the power supplied.
- Q: What are the advantages of Veikong Variable Frequency Inverters?
- A: Veikong Variable Frequency Inverters offer many advantages, such
as energy savings, improved process control, and increased motor
life.
